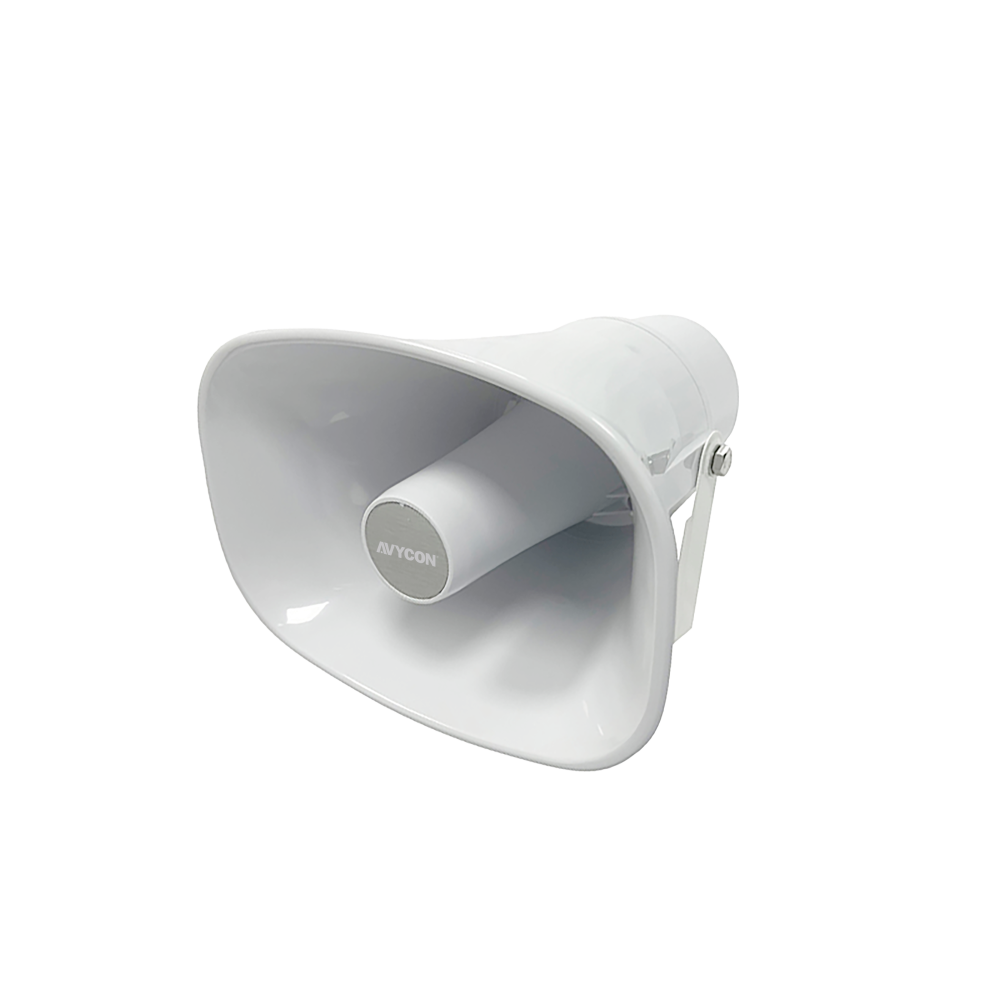

15W SMART ALL-IN-ONE IP HORN SPEAKER
· Delivers crystal-clear sound with built-in digital signal processor (DSP)
· Features an IP67 waterproof design
· Supports both PoE and DC12V local power supply options
· Compatible with VoIP devices (IPPBX, IP Phone) through SIP
· Integrates with IP Camera VMS via ONVIF
· Supports pre-recorded messages, alarms and music
· Utilizes HTTP API for alarm transmission
| AUDIO | |
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Built-in Microphone | N/A |
| SPEAKER | |
| Max SPL | 113dB |
| Frequency Response | 300Hz~8KHz |
| Frequency Range | 500-2KHZ +-10dB 400-12KHZ +-20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| NETWORK | |
| Security | Password protection, IP address filtering, Digest authentication, User access log, Firewall |
| Network Protocal | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VolP | Support for SIP protocol for intergration with VoIP systems, intergrated with SIP/PBX 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA |
| AMPLIFIER | |
| Amplifier Description | Built-in 15W Amplifier |
| GENERAL | |
| Operating Temperature | -22°F ~ +140°F (-30°C ~ +60°C) |
| Operating Humility | 5%-85% |
| Material | ABS (IP67 water-proof) |
| Rate Power | 15W |
| Power Supply | PoE or DC12V |
| Installation | Wall Mounted |
| Dimensions | 8.66 x 6.41 x 9.64 in (220 x 163 x 245mm) |
| Net Weight | 2.8 lbs (1.3 KG) |
| Languages | English |
| Package Includes | IP Horn Speaker User Manual |
