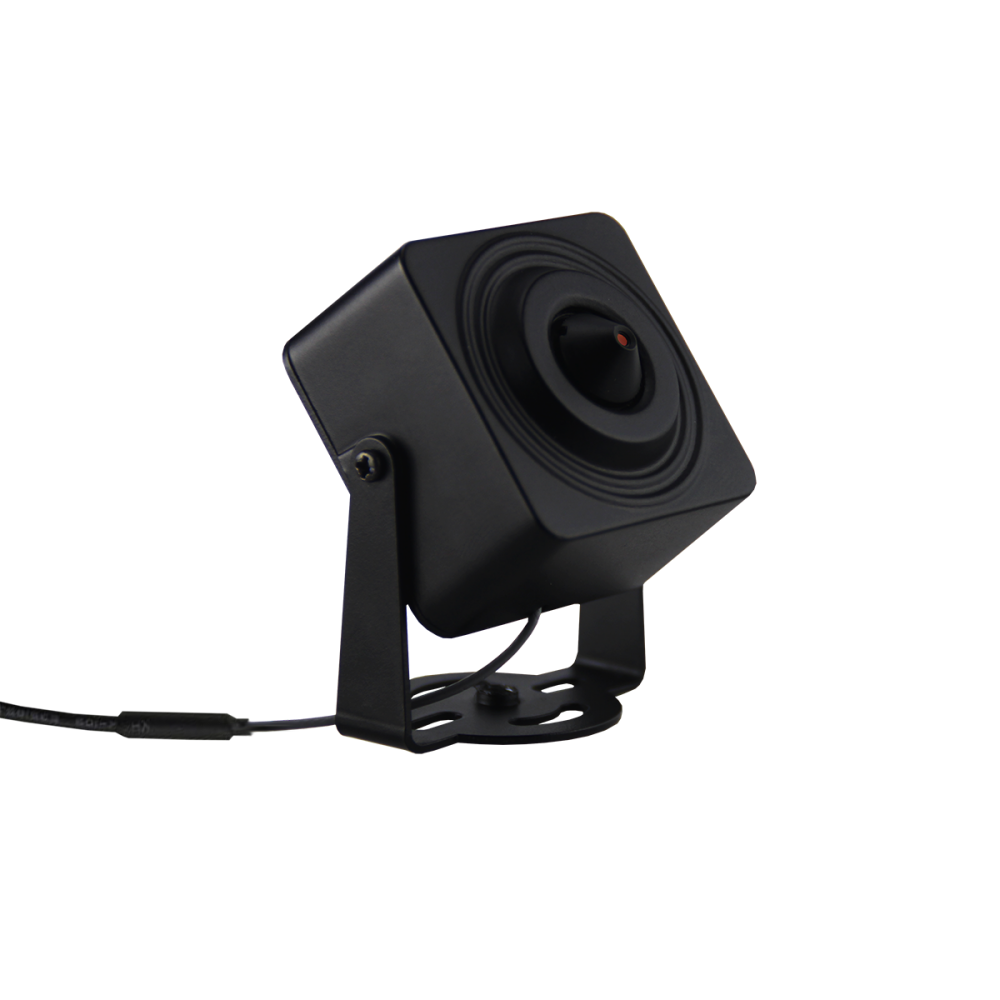

4MP EVO SERIES IP FIXED TURRET NETWORK CAMERA
The AVC-NMS41P37 camera is a 4MP H.265 EVO Series Fixed Miniature Network Camera. This 4MP IP camera supports PoE and includes a fixed 3.7mm Lens. Also standard with this series is Digital NR, ROI, True WDR, and BLC capabilities along with an built-in Mic and Mirco SD card slot.
• 4MP ( 2560 x 1440 ) @ 30fps
• Max. Resolution: 2668 x 1512
• Supports Smart H.265/H.264 Encoding
• Fixed 3.7 mm Lens
• 3D DNR, WDR, BLC and ROI Encoding
• Supports Built-in Mic
• Supports Triple Streams
• Supports ONVIF Profiles S and G
• Built-in Micro SD card slot
• Operating Temperature: -4°F - 140°F
• DC12V / PoE (802.3af, 4W)
• NDAA Compliant
| CAMERA | |
| Image Sensor | 1/3" Progressive Scan CMOS Sensor |
| Resolution | 4MP |
| Effective Pixels | 2560(H) x 1440(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI |
| Audio Compression | G711A/U, AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimum Illumination | Color: 0.01 Lux @ (F1.6, AGC ON) |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| LENS | |
| Focus Length | Board Lens 3.7mm/F2.8 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 4MP |
| NIGHT VISION | |
| Infrared LED | N/A |
| Infrared Distance | N/A |
| IR Status | N/A |
| IR Power On | N/A |
| NETWORK | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | Optional, Wi-Fi(IEEE802.11b/g/n),2.4Ghz,Antena:2.5dbi,WIFI Range:No obstacles 100m Max |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP |
| ONVIF | Support ONVIF 19.12(Profile S/T/G) |
| P2P | YES |
| POE | External POE But Without Audio and Alarm Functions, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2688 x 1512@20fps |
| Main Stream 2 | 2560 x 1440@30fps |
| Main Stream 3 | 1920 x 1080@30fps 1280 x 720@30fps |
| Sub Stream 1 | 1280 x 720@30fps |
| Sub Stream 2 | 720 x 480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | N/A |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iPhone, Android |
| CAMERA FEATURES | |
| Day/Night | Color |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion |
| Full Color | Support |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support (support enable the detection based on human movement only) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese |
| INTERFACE | |
| Audio | 1 Built-in MIC |
| Alarm | N/A |
| SD Card Slot | Support 512G Micro SD Card Slot |
| RS485 | N/A |
| GENERAL | |
| Housing | Metal |
| Anti-cut Bracket | NO |
| IR Cut Filter | NO |
| Operation Temperature | -4°F ~ 140°F (-20°C ~ +60°C) RH95% Max |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +60°C) RH95% Max |
| Power Source | DC12V±10%, 350mA |
| Dimension | 1.41in(W) x 1.41in(H) x 1.06in(D) (36mm(W) x 36mm(H) x27mm(D)) |
| Weight | 0.66lb (300g) |
4MP H.265 EVO SERIES FIXED MINIATURE NETWORK CAMERA
-
