4MP SMART DEFENDER EYEBALL IP CAMERA

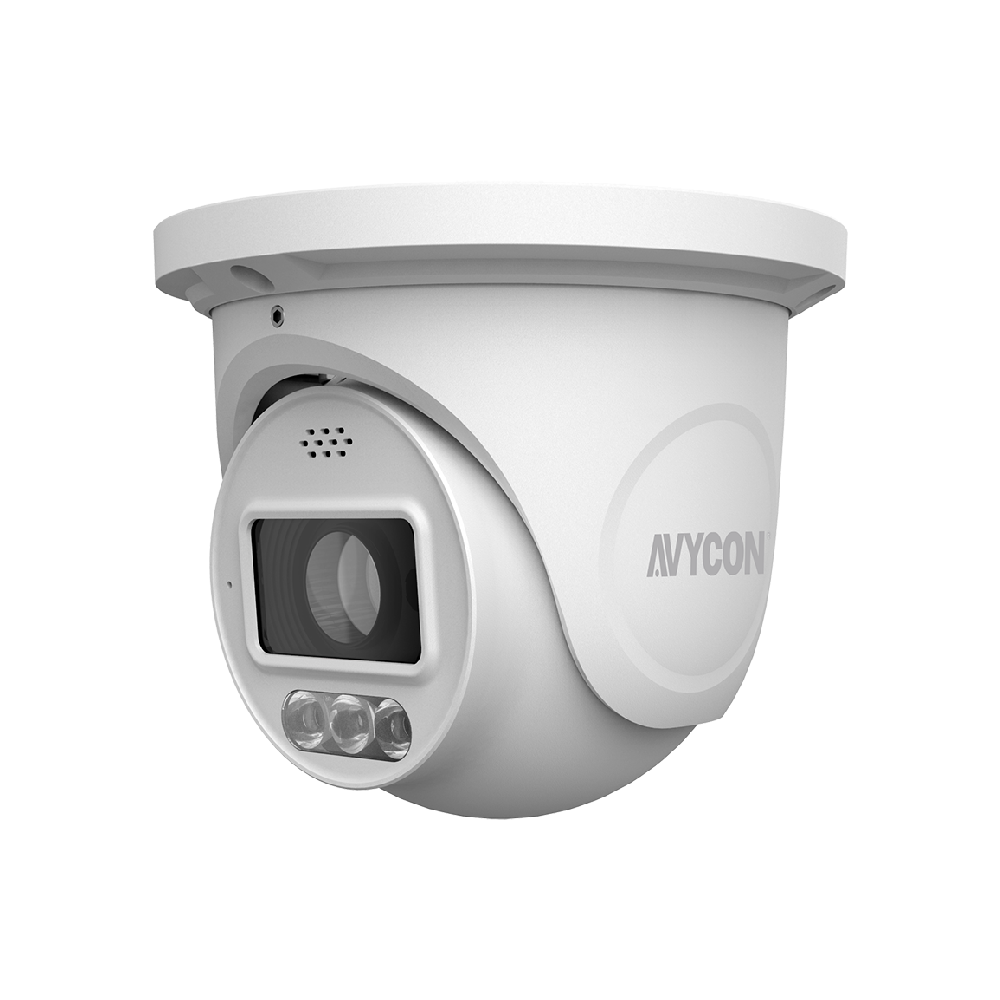

The AVC-ENN41AVT-AI-SL is a 4MP H.265 Eyeball IP Camera with a motorized 2.8 - 12mm auto-focus lens and featuring our newest generation of video analytics, with an integrated speaker and LEDs to warn intruders when their motion is detected. This camera supports True Day/Night mode, True WDR capabilities and also includes a microSD memory card slot for standalone recording applications.
The AVC-ENN41AVT-AI-SL can be powered by both PoE(802.3af) and DC12V and also includes a hardware reset button. Integrated Video Analytics include Missing/Abandoned Objects, Line Crossing, Heat Map, Vehicle/People Counting and Facial Detection.
• 4MP H.265 Real Time Encoding
• Maximum Resolution: 2592 × 1520
• Motorized 0.1"- 0.5"(2.8 - 12mm) Zoom Lens
• Smart IR Illumination Up to 164ft (50m).
• True Day/Night
• True WDR
• Hardware Reset
• Built-in micro SD card slot with video and still image capture function (up to 256GB)
• Supports Three Streams
• NAT/P2P Function Optional
• Integrated Speaker and Warning LEDs to alert intruders when motion (Standard & Advanced) is detected
• Video Analytics: Line Crossing, Scene Change, Region Intrusion, Video Blur Detection, etc.
• Supports Mobile Monitoring by Smart Phones with iOS and Android OS
• IP67 Outdoor Rating
• DC12V / PoE (802.3af) <11W
• NDAA Compliant
| CAMERA | ||||||||||||||||
| Image Sensor | 1/3" Progressive Scan CMOS | |||||||||||||||
| Image Size | 2592 x 1520 | |||||||||||||||
| Shutter Speed | 1/2s to 1/100,000s | |||||||||||||||
| Iris Type | DC Iris | |||||||||||||||
| Min. Illumination | Color: 0.005 lux @ F1.6(AGC ON); BW: 0 lux with IR | |||||||||||||||
| IR Distance | Up to 164ft | |||||||||||||||
| Lens | Motorized 2.8 - 12 mm @ F1.4 Horizontal FoV: 98° ~ 29° Vertical FoV: 54° ~ 16° Diagonal FoV: 118° ~ 32° | |||||||||||||||
| Focus | Motorized | |||||||||||||||
| Lens Mount | Ø14 | |||||||||||||||
| Day & Night | ICR | |||||||||||||||
| Wide Dynamic Range | 120dB | |||||||||||||||
| Digital NR | 3D DNR | |||||||||||||||
| Backlight Compensation (BLC) | Yes | |||||||||||||||
| Highlight Compensation (HLC) | Yes | |||||||||||||||
| Defog | Yes | |||||||||||||||
| S/N Ratio | ≥50dB | |||||||||||||||
| Angle Adjustment | Pan: 0°~360° ; Tilt: 0°~75° ; Rotation:0°~360° | |||||||||||||||
| VIDEO IMAGE | ||||||||||||||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||||||||||||||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||||||||||||||
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |||||||||||||||
| Main Stream | 60Hz: 4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps) | |||||||||||||||
| Sub Stream | 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) | |||||||||||||||
| Third Stream | 60Hz: D1/480x240/CIF (1~30fps); 50Hz: D1/480x240/CIF (1~25fps) | |||||||||||||||
| Video Bit Rate | 64 Kbps ~ 8 Mbps (CBR / VBR Adjustable) | |||||||||||||||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||||||||||||||
| ROI | Each ROI to be configured separately | |||||||||||||||
| NETWORK / INTERFACE | ||||||||||||||||
| Network | 1 x RJ45 10M / 100M Self-Adaptive Ethernet port | |||||||||||||||
| Network Protocol | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, HTTP POST, QoS | |||||||||||||||
| Interface Protocol | ONVIF | |||||||||||||||
| Web Browser | IE11 (Plug-in required) / Google Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+ | |||||||||||||||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||||||||||||||
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function | |||||||||||||||
| Video Output | No | |||||||||||||||
| Audio | 1CH built-in speaker; 1CH built-in MIC | |||||||||||||||
| Audio Compression | G711A / U | |||||||||||||||
| Alarm | 1CH alarm input; 1CH alarm output | |||||||||||||||
| Hardware Reset | Yes | |||||||||||||||
| DORI DISTANCE | ||||||||||||||||
|
||||||||||||||||
| FUNCTIONS | ||||||||||||||||
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 | |||||||||||||||
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, light alarm, audio alarm | |||||||||||||||
| Smart Analytics | Line crossing (human/vehicle classification), region intrusion/entrance/exiting detection (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, Target counting by line/intrusion area/heat map, exception detection, face detection and face capture | |||||||||||||||
| Video Metadatas | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||||||||||||||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern | |||||||||||||||
| GENERAL | ||||||||||||||||
| Power Supply | DC12V / PoE (IEEE802.3af) | |||||||||||||||
| Power Consumption | <12.5W | |||||||||||||||
| Operating Environment | -22°F ~ 140°F (-30°C ~ 60°C) Humidity: less than 95% (non-condensing) |
|||||||||||||||
| Storage Environment | -22°F ~ 149°F (-30°C ~ 65°C) Humidity: less than 95% (non-condensing) |
|||||||||||||||
| Dimensions (in) | Ø 4.39 × 3.92 | |||||||||||||||
| Weight (lb) | Approx. 1.41 lbs | |||||||||||||||
| Ingress Protection | IP 66 | |||||||||||||||
| Certificate | CE, FCC | |||||||||||||||
| Installation | Ceiling mounting; Wall mounting | |||||||||||||||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH (EC1907/2006) | |||||||||||||||
4MP SMART DEFENDER EYEBALL IP CAMERA
