7.0” H.265 4K ALL-IN-ONE NETWORK TESTER

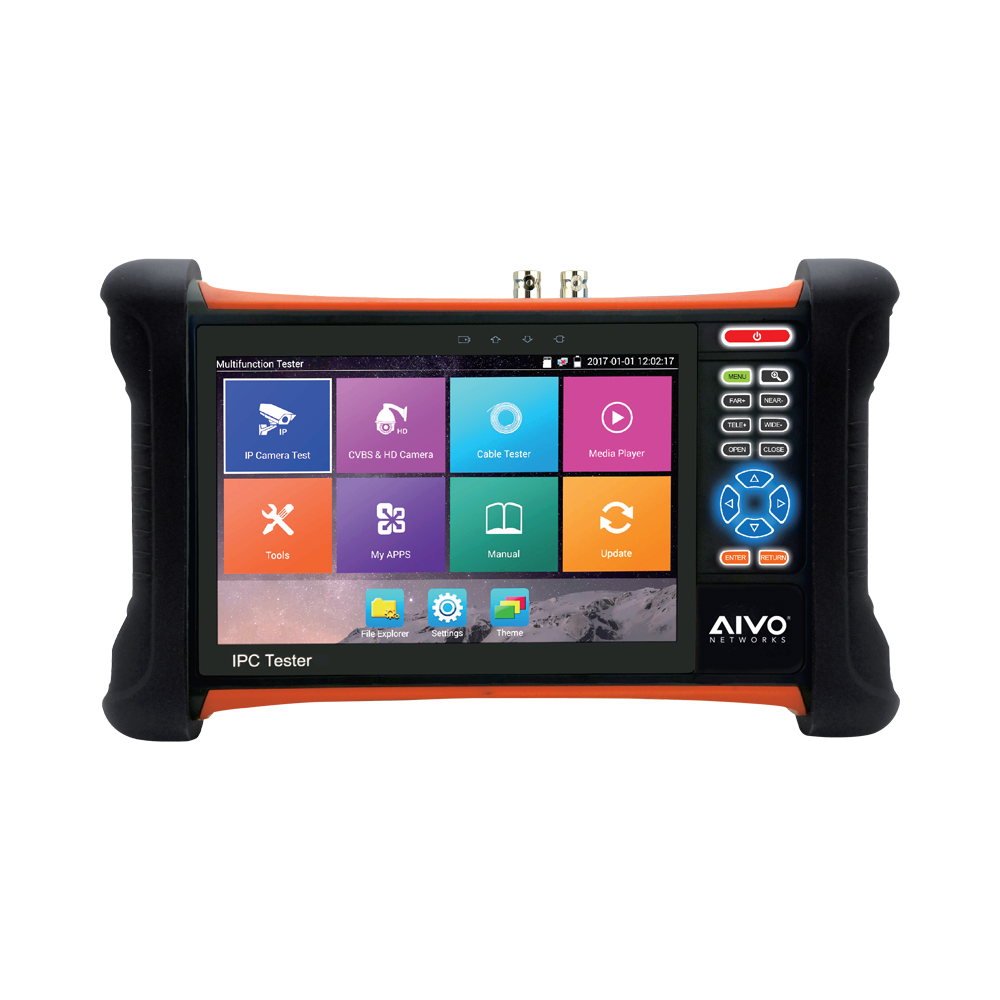

The AVYCON AIVO-70A4K is a 7.0” All-In-One CCTV Network Tester. This tester is compatible with TVI, CVI, AHD, SDI, and Analog. It supports 4K and has a built-in touch screen and Wi-fi capability. The tester is oriented in a handheld style with an included shoulder strap for transport.
• 7" High Definition Touchscreen, 1920 x 1200 Resolution
• H.265, H.264, up to 4K video display via IPC Main Stream
• IP & CVBS (Analog) or HDMI IN & IP Test can be used simultaneously
• 4K Video files and MKV / MP4 formats supported for playback
• 8MP (4K) TVI test, supports up to 3840 x 2160P @ 15FPS
• 8MP (4K) CVI test, supports up to 3840 x 2160P @ 15FPS
• 8MP (4K) AHD test, supports up to 3840 x 2160P @ 15FPS
• 8MP (4K) EX-SDI & 1080P HD-SDI test
• HDMI Input supports up to 1080P, outputs up to 4K
• Up to 4 Channels Rapid ONVIF scan, Auto login, View live video, and create camera test reports
• ONVIF PTZ Control, Video Record and Playback, Screen Snapshot, 4x Digital Zoom, Move the image display and Video Output
• Testerplay™- Display camera stream on tester and PC / Mobile Devices simultaneously
• PoE/DC 12V Output, Input Voltage and Voltage Measurement
• PoE Input Wattage Tester (15W Max)
• Ability to install third-party Android apps
• 12 hour battery time, 3-4 hour charging time
| LCD | |
| Display Resolution | New 7 inch touch screen with retina display,1920 x 1200 resolution |
| Video Mode | |
| CVBS/RS485 | - 1 Channel BNC input & 1 Channel BNC looped output, NTSC/PAL (Auto adapt) - Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement - PTZ control, RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, etc - CVBS loop test: The tester send and receive color bar generator signal, check BNC cable |
| IP Camera Test | - IPC Test/Rapid Video: Can view and control connected IPC using ONVIF Protocol - Hik Test Tool: One touch activation for Hikvision camera, Image test, supports modification of username, password and IP parameters - Dahua Test Tool: Dahua camera test, supports modification of username, password, and IP parameters |
| IP& CVBS Test | IP & CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD Test | - 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu - 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,UTC control/ call OSD menu - 8MP AHD test, 3840x2160P 15 FPS, UTC control/ call OSD menu - 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu |
| HDMI Input | 1 Channel HDMI input, supports 1080P |
| Zoom Image | 4x Zoom, to enlarge image, Screen snapshot, Record, Save, View and record and play back |
| Analog Video Output | |
| Colorbar Generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| Power Output | |
| 12V/3A Power Output | Output DC12V/3A Power out, supplies temporary power for the camera for testing purposes |
| PoE Power Output | 48V PoE Power output, max power 24W |
| Cable Test | |
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc |
| General | |
| HDMI Output | 1 Channel HDMI output, supports 1920 x 1080P |
| Testerplay | Screen Projection: Tester, Android version mobile phone and PC display at the same time |
| Network Test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in Wi-Fi, Speeds of up to 150 Mbps, display wireless camera image |
| Audio Test | 1 Channel audio signal input, test whether sound normal, 1 channel audio signal to connect headphone |
| PoE Test | Measures PoE switch or PSE power supply voltage and cable connection status (15W max) |
| Drop-down menu | Allows accessing PoE power switch, IP setting, WLAN switch, HDMI IN functions in any interface |
| Power Supply | DC 12V 3A |
| Battery | Built-in 7.4V Lithium polymer battery, 7500mAh |
| Rechargeable | 3-4 hours of charge time allows up to 12 hours of normal working time |
| Working Environment | -10°C~+50°C (14°F~122°F) / 30%~90% |
| Dimensions | 10” x 6.3” x 1.8” (255mm x 160mm x 46mm) / 2.1lb (0.95kg) |
