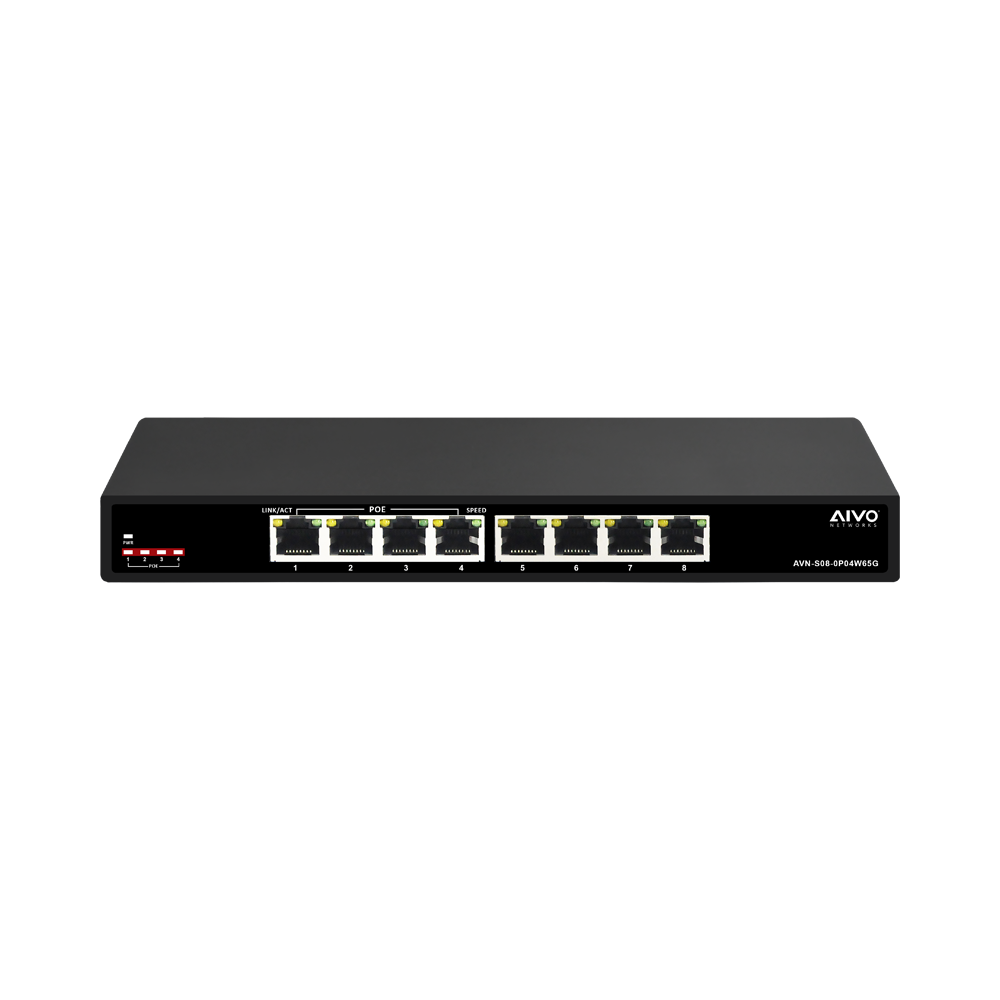

8 PORT 65W GIGABIT 4 PoE SWITCH
The AVN-S08-0P04W65G is 8 port Gigabit PoE switch with a gigabit SFP uplink port that provides 8 10/100/1000M RJ45 Ports and 8 PoE Ports. The PoE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP Cameras, etc. All PoE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Extend Function: Port Lightning protection, Power lightning protection, Solid VLAN.
• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
• 8 10/100/1000Base-TX ports
• 4 PoE Port, each port output 16W max power
• Reliable Power Adapter supply power for both network switch and PoE
• Total Wattage 65W
• 4K entry MAC address table of the PoE switch with auto-learning and auto-aging
• High back-plane bandwidth 18Gbps
• IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
• Surge protection for power port and data ports
• Compact metal case for desktop or wall-mounting
• EMI standards complies with FCC, CE class B
• Extend Function: Port Lightning protection, Power lightning protection, Solid VLAN
| GENERAL | |
| Fixed Port | 8 10/100/1000BASE-TX Ports |
| PoE Ports | 4 PoE Ports (Port 1-4) |
| LED Indicators | PWR, PoE, Link / Act LED |
| Input Voltage | 100V~240V AC, 50/60Hz (for Power Adapter) 48VDC (for Switch) |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x FLOW CONTROL IEEE 802.3az |
| Network Media | 10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) 1000BASE-TX: : 148800pps/port |
| Total Wattage | 65W |
| Operating Temperature | 0°C~40°C. (32°F ~ 104°F) |
| Storage Temperature | -10°C~70°C. (14°F ~ 158°F) |
| Relative Humidity | 20%~85% (Non-Condensing) |
| Thermal Method | Fanless |
| Switching Capacity | 18G |
| MAC Address Table | 4K |
| Traffic Control | IEEE 802.3x Full-Duplex flow control |
| Dimensions | 218mm x 105mm x 29mm (W x D x H) |
| Weight | <2 KG |
| Package | AVN-S08-0P04W65G PoE Switch User Manual Power Adapter Power Cable Warranty Card |
| PoE Port | 4 10/100/1000BASE-TX Ports |
| PoE Standard | IEEE802.3af, IEEE802.3at, per port 15.4W, MAX 30W |
| PIN Assignment | V+ (RJ45 PIN1, 2), V- (RJ45 PIN 3, 6) |
| Extend Function | Port Lightning Protection, Power Lightning Protection, Solid VLAN |
