16 CH 4K UHD DIGITAL VIDEO RECORDER
• Supports Up to 16 CH TVI/AHD/CVI/8MP/5MP/4MP/3MP/1080P/720P/WD1 video input
• Supports 8CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP video input
• Standard H.265 high profile compression format
• Intuitive and user-friendly Graphic User Interface (GUI)
• Multiple Recording Modes: Manual, Scheduled, Motion, and Sensor
• Playback: 8 Channels Simultaneous Playback
• Search: Search by Time Slice, Time, Event (Manual, Sensor, Motion), Tag Search
• Quick and Intuitive Backup via USB and Network
• Pentaplex Operation: Can simultaneously allow Preview, Record, Playback, Backup and Remote Access from Different Users
• Network functions such as DHCP, DDNS, PPPoE protocols supported and also access with CMS clients.
• Remote Access using Internet Explorer/Safari or CVMS: Live Preview, Playback, Backup, PTZ, and System Configuration
• Dual stream technology allows for High Quality Local Recordings and Standard Quality Video for Mobile and Remote Access
• Allows Simultaneous Online Users to Access Device
• Support PTZ Preset and Auto-Cruise, with Up to 255 Presets and 8 Cruise Paths
• Support NAT Function and QR Code Scanning by Mobile Apps, Eliminating the need to Configure Port Forwarding
• Powerful Mobile Apps on iOS and Android
• NDAA Compliant
| VIDEO | |

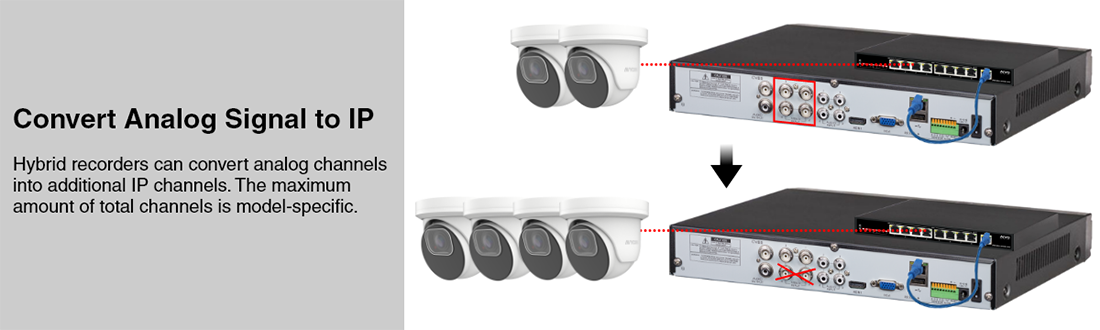

| Video Input (Analog + IP) | Total: 24 CH Analog: 16 CH IP: 8 CH (16 CH Max. IPC Supported When Converting Analog Channels) |
| Output |
HDMI x 1: 3840 x 2160 / 1920 x 1080 / 1280 x 1024 / 1024 x 768 VGA x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768 BNC x 1: CVBS (used as the main or spot output) |
| HD-Analog Input Resolution | 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1 / D1 |
| IP Input Resolution | 4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth (Mbps) | 32 (Max 64) |
| Outgoing Bandwidth (Mbps) | 96 |
| Video Compression |
Standard H.264 / H.265 |
| AUDIO | |
| Network Input | 16 Channel IPC Audio Input |
| Local Input |
RCA x 8 |
| Local Output |
RCA x 1 |
| 2-Way Audio | Take up channel one audio input |
| HDMI Audio Output | Yes |
| Compression | G.711(U/A) |
| RECORDING | |
| Resolution | 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1 / D1 |
| Channels | 4K @7/6fps (NTSC/PAL) / 4K Lite @15/12fps (NTSC/PAL) / 5MP @12fps (NTSC/PAL) / 5MP Lite @20fps (NTSC/PAL) / 4MP & 3MP @ 15fps(NTSC) & 12fps(PAL) / 4MP Lite / 1080P / 720P / WD1 / D1 @30fps(NTSC) & 25fps(PAL) |
| Frame Rate |
30fps(NTSC) / 25fps(PAL) |
| Bit Rate | 32Kbps ~ 8Mbps |
| Record Stream | Dual Stream Recording |
| Mode | Manual, Timer, Motion, Smart Event |
| PLAYBACK | |
| Smart Search |
Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events |
| Search | Time slice / Time / Event / Tag Search / Smart Search |
| Function | Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc. |
| Simultaneous Playback | Max 8 Channels |
| Live/Playback | 1 Channel @ 8MP / 16 Channels 1080P @ 30FPS |
| ALARM | |
| Alarm Input |
16 Channels Local Alarm Input; IPC Alarm Input Supported |
| Alarm Output |
4 Channels |
| Alarm Trigger |
Manual, Motion, Exception, Smart Event |
| STORAGE | |
| HDD Interface | SATA x 2, Max 18TB per HDD; e-SATA x 1 |
| BACKUP | |
| Network Backup |
Yes |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| NETWORK | |
| Interface |
RJ45 1,000 Mbps x 1 |
| Protocol | TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs |
| EXTERNAL INTERFACE | |
| RS-485 | Yes (Half-Duplex), Connect to PTZ or Keyboard |
| Remote Controller |
Optional |
| USB | USB 2.0 x 2 |
| GENERAL | |
| Power Supply |
DC 12V/4A |
| Power Consumption | ≤30W (Without HDD) |
| Working Environment | 14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10% ~ 90% (Non-Condensing) |
| Dimensions |
14.96” x 10.55” x 1.77” (380mm x 268mm x 45mm) |
16 CH 4K UHD DIGITAL VIDEO RECORDER
