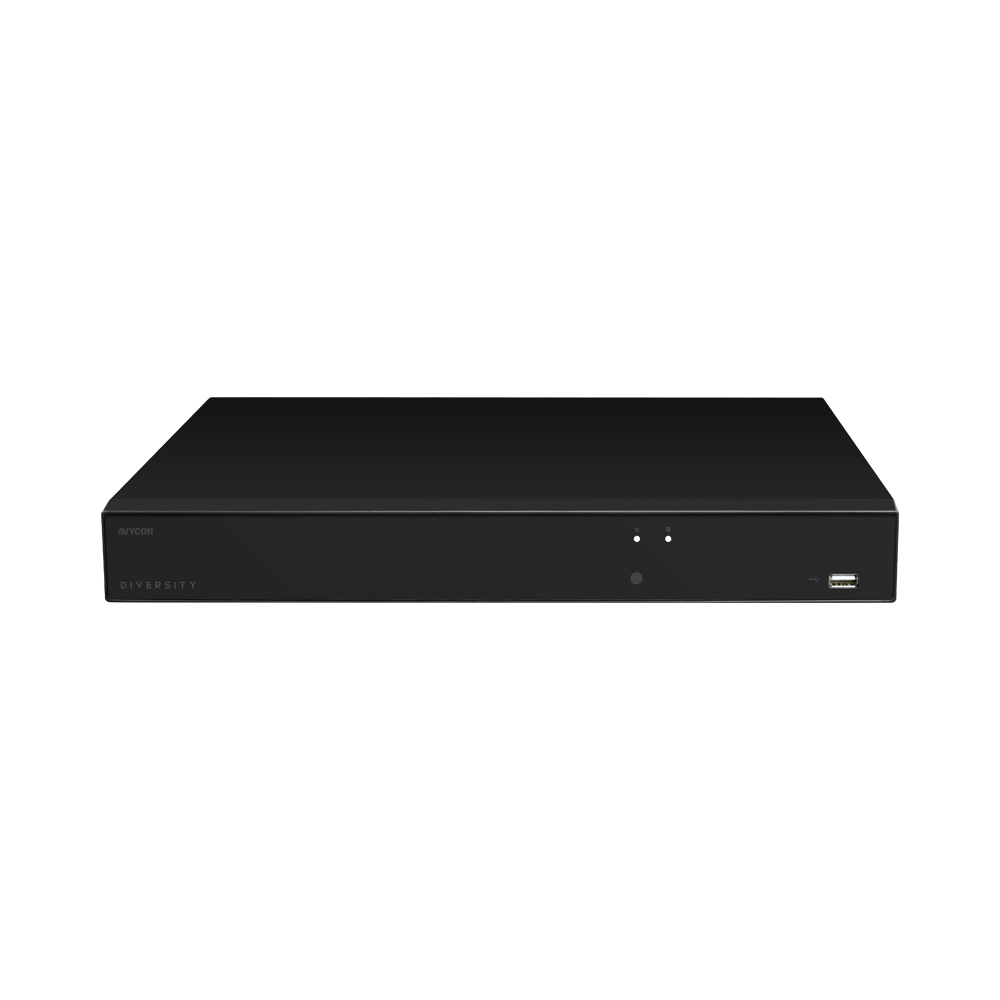

16 CH. 4K UHD DIGITAL VIDEO RECORDER
• H.265 codec decoding
• Max. 192Mbps(16CH) input bandwidth
• Up to 8MP (4K) resolution for preview and playback
• Support to install up to 2 HDD, max total capacity of up to 32TB
• Full function network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
• No limitation on adding devices to CMS, max. 128 channels preview (CMSONE Client Software)
• Support scan P2P QR code to connect DVR via Mobile app (AVY Mobile One)
• Support to save pictures/video to Dropbox storage (Dropbox)
• Support to save pictures/video to FTP server (built by user)
• VGA/HDMI output up to 4K resolution
• Support HDD S.M.A.R.T. Monitoring
• Optional e-SATA HDD recording
• Ability to convert up to 16 analog channels to have in total 24 IP channels (Total Bandwidth 192mbps)
| VIDEO | |
| Analog Video input | 16CH Input |
| IP Video Input | 8CH, (Only IP up to 24CH) |
| Total Video Input | 24CH, (Analog + IP) |
| Output | HDMI x 1 / 3840 x 2160(4K) / 2560 x 1440(2K) / 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 VGA x 1: 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 BNC x1: 704 x 576 |
| Incoming Bandwidth (Mbps) | 64Mbps~192Mbps |
| Outgoing Bandwidth (Mbps) | 192Mps |
| Video Compression | H.264/H.265 |
| Audio Compression | G.711a |
| Installation Wizard | Yes |
| HD Analog | 8MP:15fps / 5MP:20fps / 4MP / 1080P / 960P:30fps |
| IP | 4K / 4MP / 1080P / 720P |
| PLAYBACK | |
| Playback Frame Rate | 8MP:144fps 5MP:240fps 4MP:320fps 1080P / 720P / NTSC:480fps (each CH) |
| Smart AI | Intrusion Detection (ID), Tripwire Detection (TD), Human & Vehicle Detection (PD & VD), Face Detection (FD), Sound Detection (SD), Video Detection (VD) |
| Event Triggers | MD (Sensitivity Level 1~8), Video Loss, Beep, Email, Push Notification to Mobile App |
| Playback Function | Fast forward / backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | Max 16CH playback |
| INTERFACE | |
| Local UI | UI5.0 |
| Web Monitoring | IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above, Edge V.79 above |
| Mobile Viewer | AVY Mobile One |
| Push Notification | Motion Event, AI, and Abnormal |
| Password Reset | Password Reset (Hold 3 seconds), Factory Reset (Press 8 seconds) |
| HDD Interface | SATA x 2, Max 32TB HDD (compatible up to 16TB each SATA) |
| SYSTEM | |
| PoE | N/A |
| Ethernet | 1 x RJ45 100/1000 Base-T |
| USB | USB 2.0 x 1 (Front Panel), USB 3.0 x 1 (Rear Panel)) |
| Audio | 16 IN / 1 OUT |
| E-Sata | No |
| RS485 | 1 |
| Alarm Input/out | 16 IN / 1 OUT |
| GENERAL | |
| OSD Language | English and more |
| Power Consumption | 20W (Without HDD) |
| Power Supply | DC12V/5A |
| Working Environment | 32°~104°F (0°~40°C) |
| Working Humidity | Less than 90%RH (Non-Condensing) |
| Dimensions | 14.84” x 12.4” x 1.69” (377mm x 315mm x 43mm) |
| SMART AI FEATURES | |
