2.1MP HD-TVI CORNER MOUNT ELEVATOR TYPE CAMERA

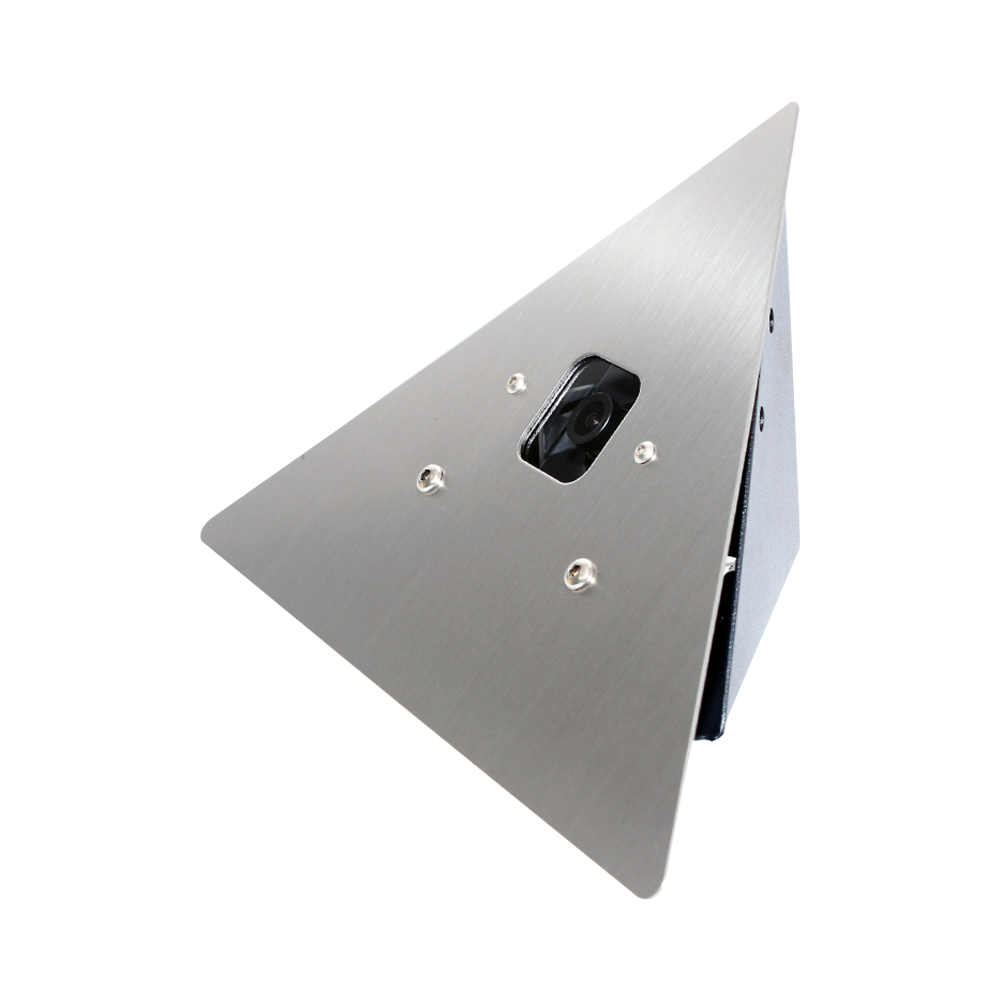

The AVYCON AVC-CMT91FT camera is a 2.1MP HD-TVI Wide Angle Lens Corner Mount Elevator Type Camera. This camera includes a 2.8 Wide Angle Lens. This camera is for Indoor use only.
• 1/2.7" Megapixel Sensor
• 2.8mm MP
• 0.01Lux
• NTSC: 30fps
• DC 12V, Indoor Use Only
• OSD Menu can switch to Analog mode
• CoC (Control over Coax)
| GENERAL | |
| Image Sensor | 1/2.7" Megapixel Sensor |
| Resolution | 2.1MP |
| HD-TVI Resolution | 1920 x 1080 |
| Electronic Shutter | 1/60s ~ 1/100,000s |
| Min. Illumination | 0.01Lux (0Lux IR ON) |
| Video Output | 1.0 Vp-p |
| Video Frame Rate | 1080P @ 30fps |
| IR LEDs |
N/A |
| Day & Night | Auto / Color / BW / EXT |
| AGC | Yes |
| BLC |
Yes / Digital |
| DNR | 2D DNR |
| OSD Menu | Yes |
| Lens | Fixed 2.8 Lens |
| Horizontal Field of View |
116° |
| S/N Ratio | >45dB (Max 70dB) |
| Power Supply | DC 12V (±10%) |
| Power Consumption | N/A |
| Working Environment | -22°F ~ 140°F (-30°C ~ 60°C) |
| Dimensions | 3.15" x 3.15" x 3.74" (80mm x 80mm x 95mm) |
| Weight | 1.28lbs |
