5MP

AVC-TCE51F28 요약정보 및 구매

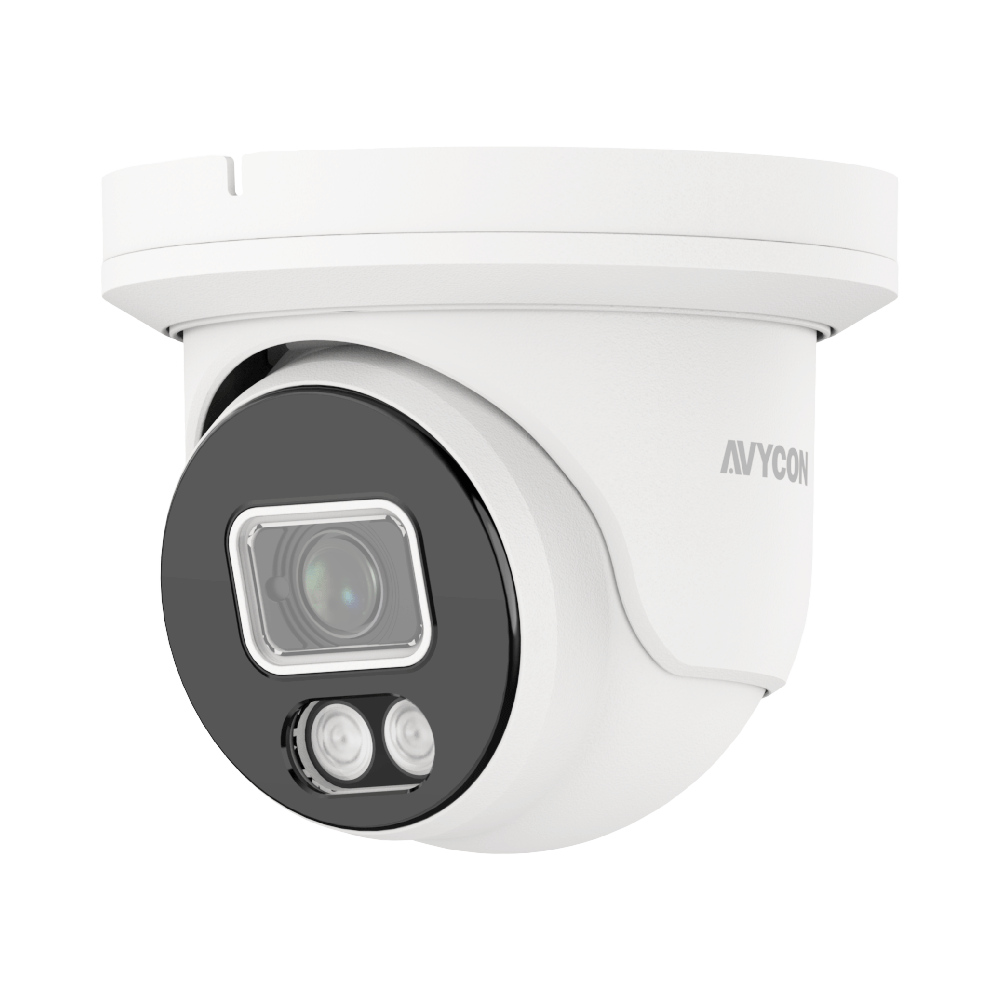

5MP INFINITECOLOR TURRET CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• 5MP (2608 x 1960) @ 20fps
• Max. Resolution: 2608 x 1960
• True Day & Night ICR
• Up to 98 ft. IR Illumination
• Fixed 2.8mm Lens
• 2D DNR, HLC, BLC
• AoC (Audio over Coaxial) up to 22.9ft
• Supports Remote Access with Windows, macOS, iOS and Android
• Operating Temperature: -22°F - 122°F
• DC12V
• NDAA Compliant

5MP INFINITECOLOR TURRET CAMERA


Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 5MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog), and a sleek new magnetic ring designed to hide all mounting screws from view and create a seamless body look. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This camera also includes AoC (Audio over Coaxial) up to 22.9ft and a 2.8mm fixed Lens with Autofocus capabilities that can be controlled through the DVR. Also standard with this series is Digital NR, AGC, and BLC capabilities along with IP67 outdoor rating.


• 5MP (2608 x 1960) @ 20fps

• Max. Resolution: 2608 x 1960

• True Day & Night ICR

• Up to 98 ft. IR Illumination

• Fixed 2.8mm Lens

• 2D DNR, HLC, BLC

• AoC (Audio over Coaxial) up to 22.9ft

• Supports Remote Access with Windows, macOS, iOS and Android

• Operating Temperature: -22°F - 122°F

• DC12V

• NDAA Compliant


Features - InfiniteColor.pngFeatures - IP67.pngFeatures - Smart IR.pngFeatures - Defogging.png
CAMERA
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP
Image Size 2608 x 1960
Video Output 1-channel BNC Video Output
Image System PAL / NTSC
Electronic Shutter Speed Auto
IR Distance Up to 98ft.
Video Formats HD-TVI / AHD / CVI / CVBS(Analog)
Frame Rate HD-TVI / AHD / CVI : 20FPS
CVBS Analog: 960H
Min. Illumination 0.05lux@F1.2 (AGC ON),0Lux with IR ON
Lens fixed 2.8mm Lens
Angular Field of View H:109.7° / V:57.6° / D:131.0°
Lens Mount φ14mm
S/N Ratio 36dB
Function Control OSD, Control over Coax (UTC)
Day & Night Color / Ext / BW (Black and White)
Digital WDR N/A
Digital Noise Reduction Yes (2D DNR)
Auto Gain Control (AGC) Yes
Auto White Balance (AWB) Yes
Backlight Compensation (BLC) No
Edge Brightness Compensation Yes
Defog Yes
HLC Yes
Sharpness Yes
Mirror Image Yes
Smart IR (Anti-SAT) Yes
Image Setting Yes
Defect Correction Auto / Manual
GENERAL
Audio
Audio over coaxial
Audio Range
22.9ft (7m)
Angle Adjustment
Any Angle
Input Voltage DC 12V (±10%)
Power Consumption IR OFF ≤0.8W,IR ON ≤4W
Ingress Protection IP67
Working Temperature -22°~131° F (-30°~55° Celcius)
Dimensions 3.93” x 2.56” (100.0mm x 65.0mm)
