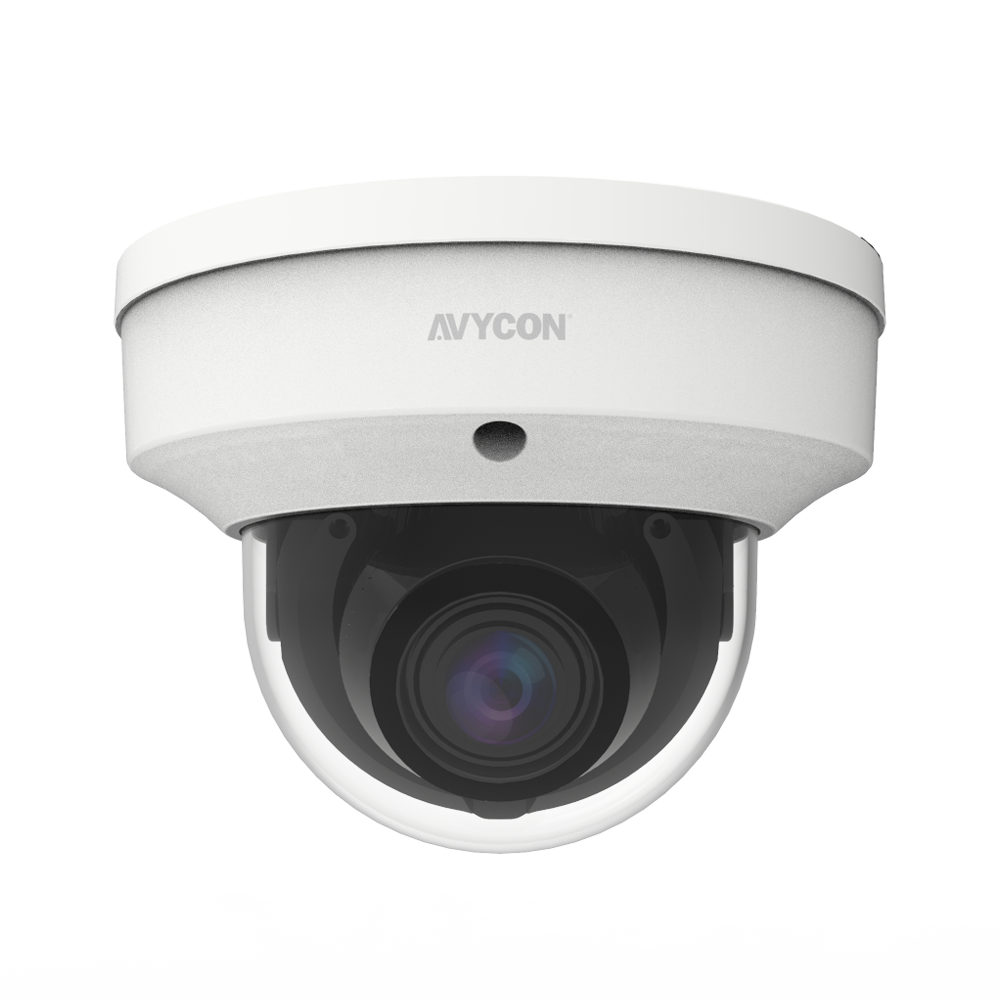

5MP HD-TVI MOTORIZED VARIFOCAL VANDAL DOME CAMERA
Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 5MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog), and 3-axis lens control. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This camera also includes a motorized 2.7mm - 13.5mm Varifocal Lens with Auto-focus capabilities that can be controlled through the DVR. Also standard with this series is Digital NR, AGC, True WDR, and BLC capabilities along with IP67 outdoor rating and an IK10 vandal proof rating.
• 5MP (2592 x 1944)
• Motorized 2.7 - 13.5 mm Lens
• HD-TVI / CVI / AHD / CVBS (Analog)
• Easy-to-Use DIP Switch to Change Formats
• True Day / Night
• Smart IR Illumination Up to 115ft.
• Digital NR
• True WDR
• IP67 Outdoor Rating
• IK10 Vandal Proof Rating
• Dual Voltage: DC 12V (±10%, 5W Consumption) & AC24V
• NDAA Compliant
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 5MP |
| Image Size | 2592 x 1944 |
| Video Output | 1-channel BNC Video Output |
| Image System | PAL / NTSC |
| Electronic Shutter | 1/15s to 1/50,000s |
| IR Distance | Up to 115ft (35m) |
| Video Formats | HD-TVI / AHD / CVI / CVBS (Analog) |
| Frame Rate | HD-TVI / AHD / CVI / CVBS (Analog): 20 FPS |
| Min. Illumination | 0.05luxF1.2 (AGC ON), 0Lux with IR ON |
| Lens | Motorized 2.7 - 13.5mm Lens |
| Horizontal Field of View | 101.89°(W) & -30.56°(T) |
| Lens Mount | φ14mm |
| S/N Ratio | 39dB |
| Function Control | OSD, Control over Coax (UTC) |
| IMAGE | |
| Day & Night | EXT / Auto / Color / BW (Black and White) |
| True WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Auto Gain Control (AGC) | Yes |
| Auto White Balance (AWB) | Yes |
| Backlight Compensation (BLC) | Yes |
| Edge Brightness Compensation | Yes |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR (Anti-SAT) | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| GENERAL | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V (±10%) & AC24V |
| Power Consumption | Maximum 5W |
| Ingress Protection | IP67 |
| Vandal Rating | IK10 |
| Working Environment | -22°~131° F (-30°~55° Celcius) |
| Dimensions | Ø5.91" x 4.41" (Ø150.0mm x 112.0mm) |
