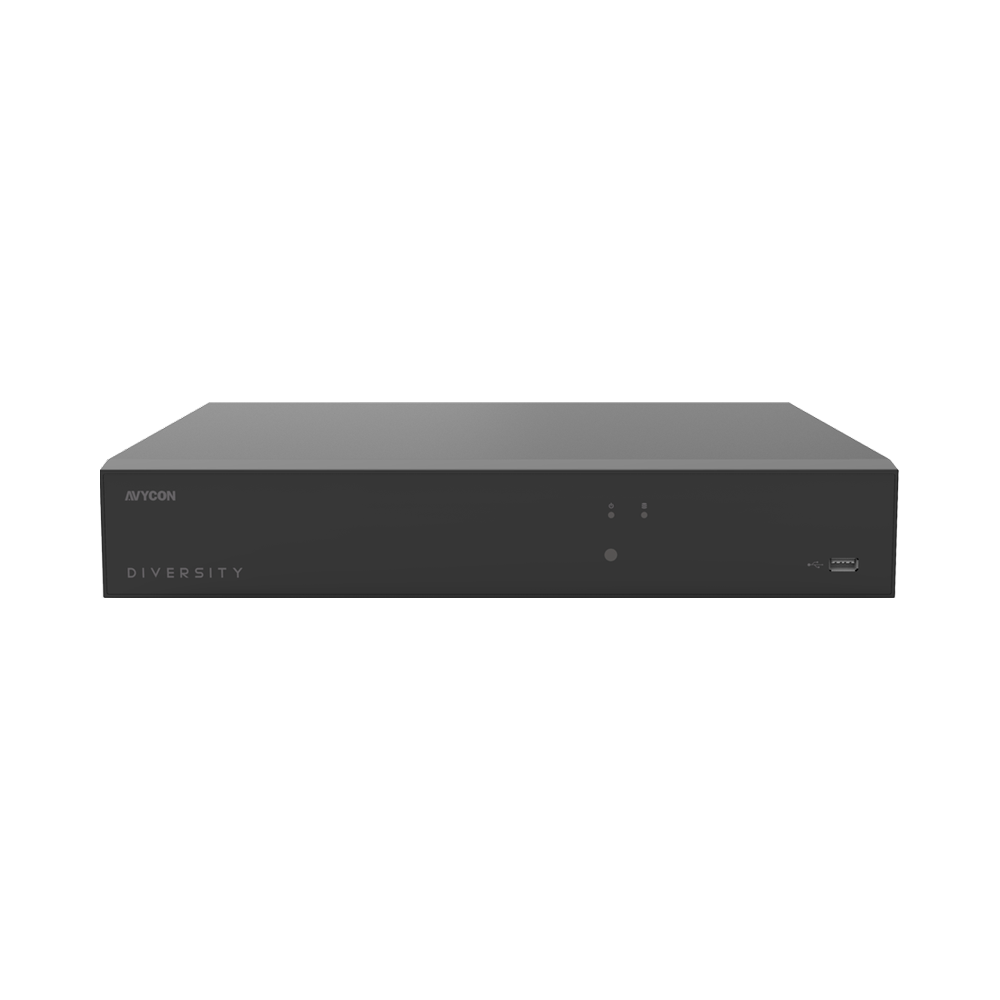

32 CH. 4K UHD NETWORK VIDEO RECORDER
· H.265+ codec decoding
· Max. 640Mbps (32CH) input bandwidth
· Up to 12MP (4K) resolution for preview and playback
· Support to install up to 4 HDDs, up to 20TB per Drive
· Full function network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
· No limitation on adding devices to CMS, max. 128 channels preview (CMSONE)
· Support scan P2P QR code to connect NVR via Mobile app (AVY Mobile One)
· Support to save pictures/video to Dropbox storage (Dropbox)
· Support to save pictures/video to FTP server (built by user)
· HDMI output up to 8K resolution
· Support HDD S.M.A.R.T. Monitoring
| VIDEO | |
| Video Resolution | 12MP, 8MP, 5MP, 3MP, 1080P, 960P, 720P |
| Recording Bandwidth Inputs | 640Mbps |
| Recording Bandwidth Output | 640Mbps |
| Installation Wizard | Yes |
| PLAYBACK | |
| Live/Playback Compression | Audio: G.711a Video: H.264/H.265, H.264+/H.265+ |
| Live/Playback Frame Rate | 4K: 240fps 4MP: 480fps 2MP: 960fps |
| Live/Playback Event | MD(Sensitivity Level 1~8) Video loss Beep, Email, Push notification to Mobile APP |
| Playback Function | Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | Max 16CH playback |
| Fisheye | Support |
| INTERFACE | |
| UI/Monitoring Local |
UI5.0 |
| WEB | IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above, Edge V.79 above |
| Mobile Viewer | AVY Mobile One |
| Push Notification | Motion Event, AI and Abnormal |
| AI |
Face Detection, Pedestrian Detection, Vehicle Detection, Cross Counting, Heat Map, Crowd Density Detection, Perimeter Intrusion Detection, Line Crossing Detection, Queue Legth Detection, License Plate Detection, Rare Sound Detection |
| P/W Reset | Factory Reset : Press 10 seconds |

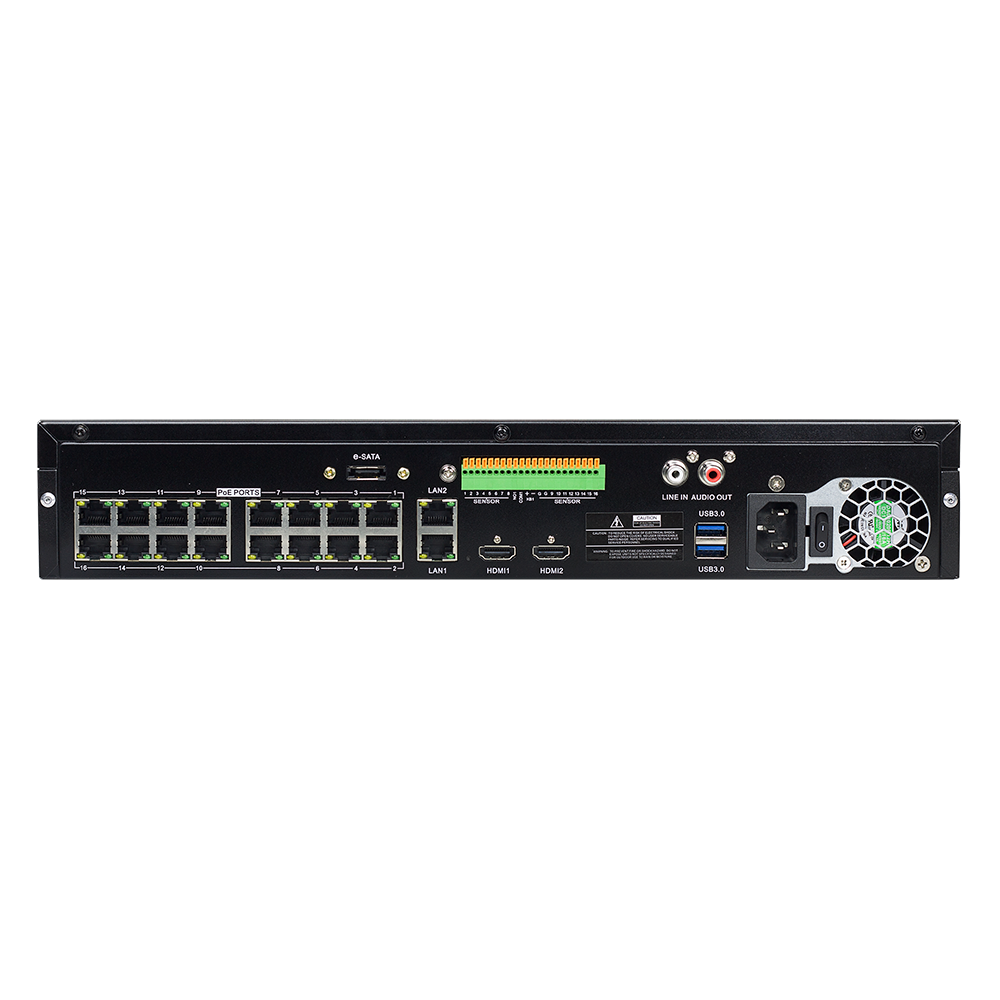

| SYSTEM | |
| HDMI | 2（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*1440, 3840*2160/EDID）Async out |
| POE | 16*RJ45, 802.3at/af |
| Ethernet | 2 RJ45 1000 Base-T |
| USB | USB2.0*1(front) USB3.0*2(rear) |
| Audio out | 1 |
| E-sata | 1 |
| HDD | 4 SATA HDD, up to 20TB (Enterprise-Class) |
| Line In | 1 |
| RS485 | 1 |
| Alarm Input/Out | 16in /1out |
| GENERAL | |
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/ Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish |
| Dimension (WxDxH) | 14.89in x 12.84in x 2.57in (378mm x 326.1mm x 65.3mm) |
| Input Voltage/Current | 280W |
| Power consumption | 10W |
| Working Environment | -10°C~+50°C (14°F ~ 122°F) |
| Working Humidity | Less than 90%RH |
32 CH. 4K UHD NETWORK VIDEO RECORDER
