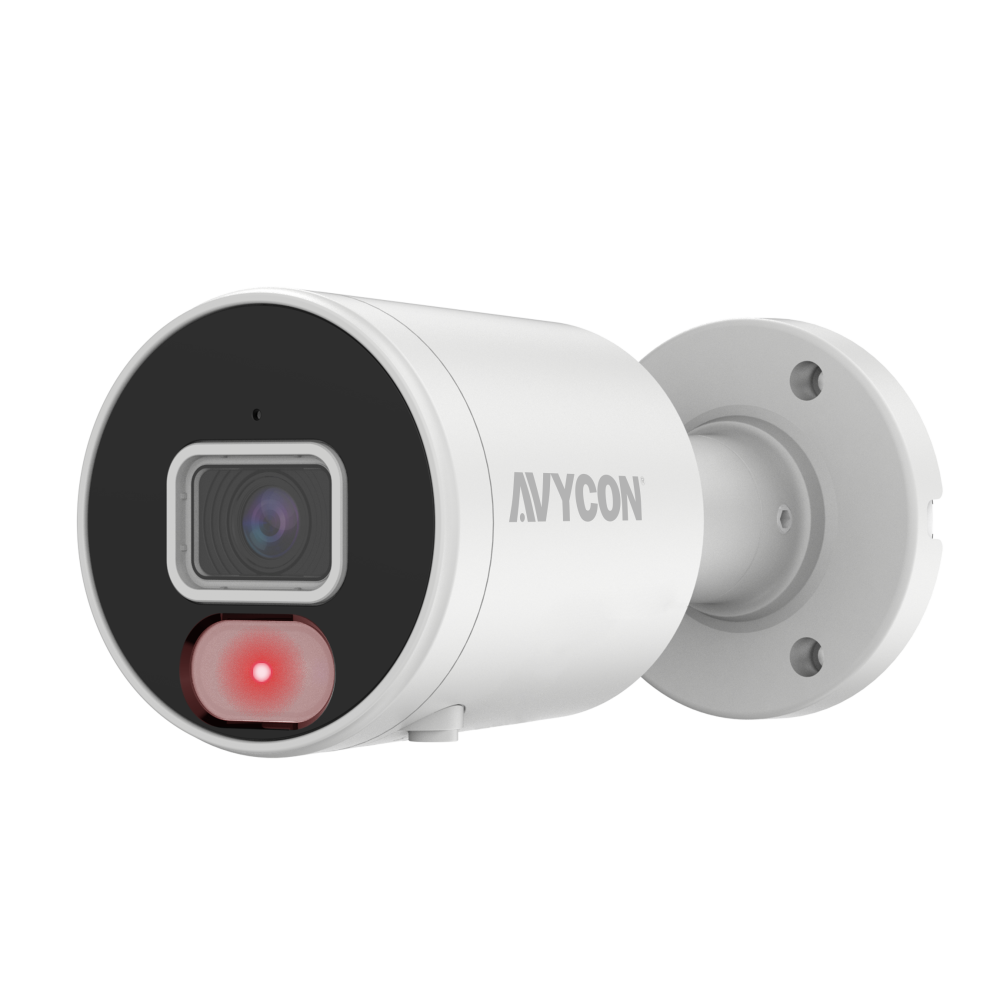

8MP Dual Light Bullet Network Camera
• 8MP (3840x2160) @15fps H.265/ H.254
• Full Color / IR Mode
• 2.8mm Fixed Lens (F1.6)
• 3D DNR, D-WDR
• Dual Light: White Light LED / Infra Red LED
• Built-in MIC
• Built-in Micro SD card slot (up to 256GB)
• AI Feature : Intrusion, Tripwire, Loitering Detection, Region Entrance / Exiting
• IP67 ingress protection
• PoE / DC12V Power supply
• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.009lux @ F1.6 (AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Max. Aperture Ratio | F No. 1.6 |
| Angular Field of View | Horizontal:111° , Vertical:59°, Diagonal: 135° |
| Min. Object Distance | 6.56ft(2m) |
| Lens Type | Fixed(M12) |
| Operational | |
| IR LED | 1 |
| WarmLight | 2 |
| IR Viewable Length | Up to 82ft(25m) |
| WarmLight Viewable Length | Up to 65ft(20m) |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone |
| Hardware Reset | Yes |
| Smart Feature | SMD(Pedestrian&Vehicle)/Intrusion/Tripwire Detection/Loitering Detection/Region Entrance/Region Exiting |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream@15fps : 8MP(3840x2160) Sub Stream@15fps : 1080P(1920x1080) |
| Video Quality Adjustment | 512Kbps ~ 6Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS |
| Application Programming Interface | ONVIF |
| Web Viewer | IE10/11 |
| Environmental | |
| Operating Conditions | -31~140F(-35~+60°C/less than < 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V ：max 5.6W； POE（48V): max 7.2W |
| Mechanical | |
| Material | Metal |
8MP Dual Light Bullet Network Camera
