Plug & Play Series

AVC-NBM81F180 요약정보 및 구매

8MP PANORAMIC BULLET NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

· H.265 Video Compression Technology
· 8MP (4096 × 1800) H.265 Full Real Time Encoding
· Max. resolution: 4096 × 1800
· Full 180° Panoramic View provides clear images without typical
  distortion of Fisheye Lens, with support for panoramic splicing
· Supports Triple Streaming
· True Day & Night ICR with Starlight
· Ultra Low Light Sensitivity of 0.003Lux@F1.2 (Color) for optimal night
  video
· Up to 65ft.(20m) Smart IR Illumination
· Video Analytics (Optional) : Intrusion, Line Crossing, Loitering,
  Tampering and Human Detection, Object Removal,
  Abandoned Object and People Counting
· Supports HLC, DNR, AWB, and Gain Control
· Built-in micro SD card slot with video and still image
  capture function (up to 256GB)
· Alarm Input/Output: 1/1 & Audio Input/Output: 1/1
· Supports PoE (802.3 af) and DC 12V
· Supports Smartphone, iPad, and Remote Monitoring
· IP67 Ingress Protection / IK10 Vandal Resistance
· Operating Temperature: -22°F - 140°F, less than 90% RH


8MP PANORAMIC BULLET NETWORK CAMERA

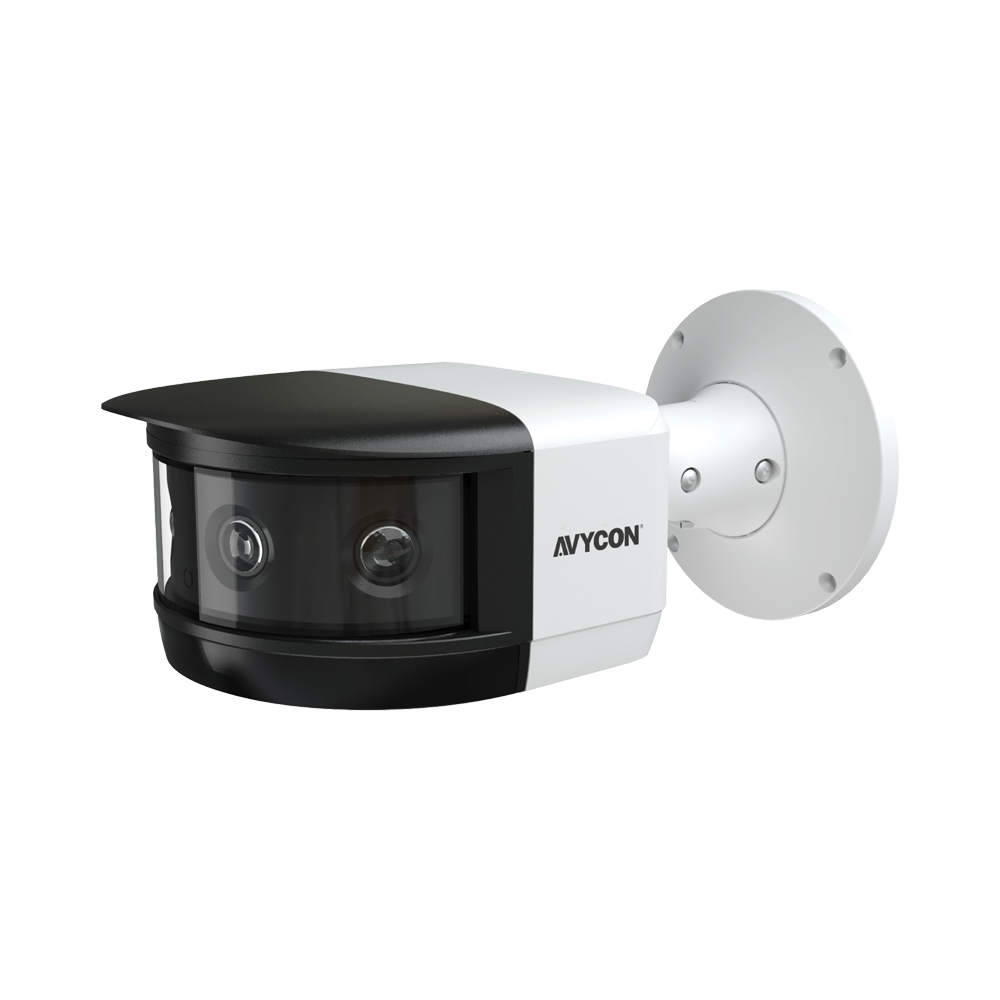

The AVYCON AVC-NBM81F180 camera is a 8MP / 4K Starlight 180° Panoramic Bullet IP Camera, providing a full 180° panoramic view and an ultra-low 0.003 lux sensitivity, providing crisp color pictures even at night. This camera supports True Day and Night mode, PoE, and up to 65ft. of Smart IR Illumination. The camera also features Alarm Input / Output connections, Audio Input / Output, a microSD slot (128GB max capacity), and is ONVIF compliant. Optional accessories for this camera include a Junction Box Mount.


· H.265 Video Compression Technology

· 8MP (4096 × 1800) H.265 Full Real Time Encoding

· Max. resolution: 4096 × 1800

· Full 180° Panoramic View provides clear images without typical distortion of Fisheye Lens, with support for panoramic splicing

· Supports Triple Streaming

· True Day & Night ICR with Starlight

· Ultra Low Light Sensitivity of 0.003Lux@F1.2 (Color) for optimal night video

· Up to 65ft.(20m) Smart IR Illumination

· Video Analytics (Optional) : Intrusion, Line Crossing, Loitering, Tampering and Human Detection, Object Removal, Abandoned Object and People Counting

· Supports HLC, DNR, AWB, and Gain Control

· Built-in micro SD card slot with video and still image capture function (up to 256GB)

· Alarm Input/Output: 1/1 & Audio Input/Output: 1/1

· Supports PoE (802.3 af) and DC 12V

· Supports Smartphone, iPad, and Remote Monitoring

· IP67 Ingress Protection / IK10 Vandal Resistance

· Operating Temperature: -22°F - 140°F, less than 90% RH


Features - InfiniteStar.pngFeatures - H265.pngFeatures - IP67.pngFeatures - IK10.pngFeatures - Intelligent Video Analytics.pngFeatures - Advanced Edge Recording.pngFeatures - Smart IR.pngFeatures - Defogging.png
CAMERA
Image Sensor 4 x 1/2.8” Progressive Scan CMOS
Min. Illumination Color: 0.003Lux@F1.2 B/W: 0.001Lux
Shutter Speed 1/10,000s ~ 1s
IR Distance Up to 65ft (20m) Smart IR illumination
Day & Night True Day/Night - ICR Filter Auto Switch
Focal Length 0.13"(3.2mm)
Field of View Horizontal: 180°; Vertical: 80°
S/N Ratio >50dB
Gain Control Manual / Auto
White Balance Manual/Auto/Indoor/Outdoor
HLC Yes
VIDEO STREAM
Max. Image Resolution 4096 x 1800 @ 30fps
Supported Resolutions 4096 x 1800, 3480 x 1680, 2880 x 1264, 1024 x 452, 704 x 320
Video Compression H.265 / H.264 / MJPEG
Video Bit Rate 128Kbps ~ 16Mbps (CBR / VBR Adjustable)
Image Settings ROI, Brightness, Saturation, Chroma, Contrast, NR; configurable through Software or Web Browser
NETWORK
Ethernet 1 x RJ45 10M / 100M Ethernet Port
API ONVIF
Protocol HTTP, HTTPs, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP,
TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP
Max Streams Up to 10 channels Live View
Max Users Up to 10 accounts; 3 User Levels: Administrator, Advanced User, Normal user
AUDIO
Audio Compression G.711A/U
Audio I/O 1 / 1
VIDEO ANALYTICS
Basic Event Motion Detection, Video Tampering Detection, SD Card Error, IP Conflict, Cable Disconnection
Smart Event Object Removal Detection, Region Intrusion Detection, Abnormal Video Detection, Line Crossing Detection,
People Intrusion, People Counting
Alarm Link Events SD Card Recording, Triggering Record, Notifying Control Center, Uploading SD Card, Sending E-mail
INTERFACES
Storage Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
RS 485 1 Channel; Pelco-D/P protocol & Custom Protocols available
Alarm I/O 1/1
GENERAL
Working Temperature -22°F~140°F (-30°C~60°C)
Working Humidity 0~95% (Non-Condensing)
Power Input DC 12V / PoE (802.3af)
Ingress Protection IP67
Vandal Resistance IK10
Weight 4.6lbs
Dimensions 11.35” x 5.42” x 6.29” (288mm x 138mm x 160mm)

8MP PANORAMIC BULLET NETWORK CAMERA
